IRRIGATION, PV SERIES – 480 VOLT

Power submersible, centrifugal and vertical hollow shaft pump loads and center pivots from single phase

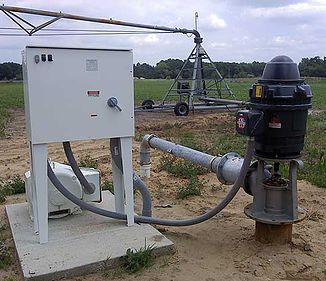

PV100 in the field with all options running 50HP submersible and pivot

 MODEL
 PUMP HP
PIVOT AMPS
START AMPS
SOFT START
IDLE AMPS
WT
 PV10 5 1-5 48 N/A 1  108
 PV15 7.5 11-15 83 N/A 4 177
PV20 10 16-21 118 N/A 6 205
PV30 15 18 182 50 6 205
 PV40 20 20 230 55 8 538
PV50 25 20 260 80 8 639
PV60 30 25 325 95 11 768
PV75 40 25 355 110 11 848
PV100 50 30 555 130 12 1162
PV125 60 30 635 195 12 1248

UL UNDERWRITERS LAB CERTIFICATION IS AVAILABLE IF REQUIRED BY CODE

SYSTEM OPTIONS:

  • Service Entrance Disconnect
  • Convenience Package
  • Automatic On-Off
  • Rotary Soft Start
  • Pump Starter
